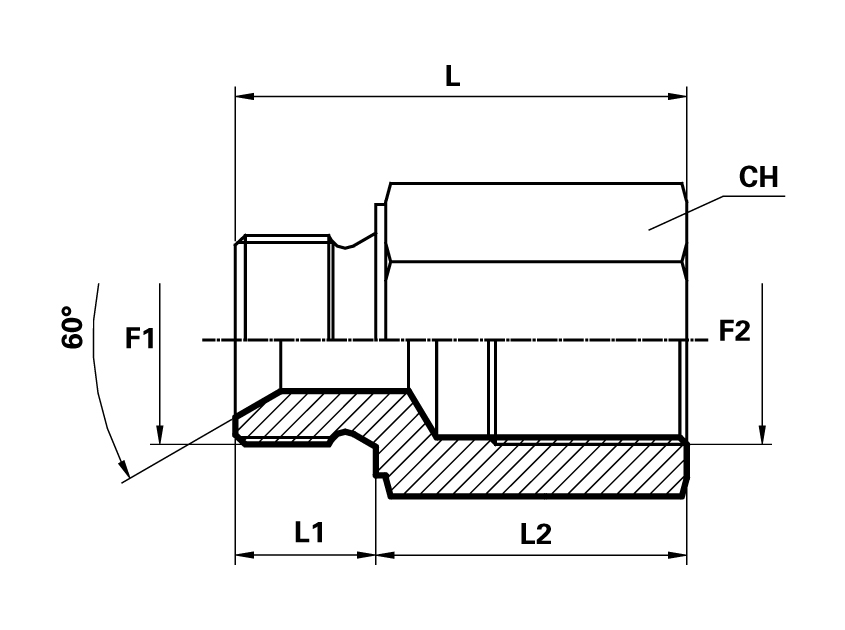

PROLUNGA MASCHIO GAS CILINDRICO - FEMMINA FISSA GAS CILINDRICA
F1 - BSPP
F2 - BSPP
| Codice | F1 | F2 | CH | L1 (mm) | L2 (mm) | L (mm) | PN (bar) |
| APMFG0230.5 | 1/8'' | 1/8'' | 14 | 9,5 | 21,0 | 30,5 | 350 |
| APMFG0238 | 1/8'' | 1/8'' | 14 | 9,0 | 29,0 | 38,0 | 350 |
| APMFG0433 | 1/4'' | 1/4'' | 19 | 11,0 | 22,0 | 33,0 | 300 |
| APMFG0442 | 1/4'' | 1/4'' | 19 | 11,0 | 31,0 | 42,0 | 300 |
| APMFG0450 | 1/4'' | 1/4'' | 19 | 11,0 | 39,0 | 50,0 | 300 |
| APMFG0455 | 1/4'' | 1/4'' | 19 | 11,0 | 44,0 | 55,0 | 300 |
| APMFG0635 | 3/8'' | 3/8'' | 22 | 12,5 | 22,5 | 35,0 | 280 |
| APMFG0642 | 3/8'' | 3/8'' | 22 | 12,5 | 29,5 | 42,0 | 280 |
| APMFG0654 | 3/8'' | 3/8'' | 22 | 12,5 | 41,5 | 54,0 | 280 |
| APMFG0840 | 1/2'' | 1/2'' | 27 | 14,0 | 26,0 | 40,0 | 200 |
| APMFG0845 | 1/2'' | 1/2'' | 27 | 14,0 | 31,0 | 45,0 | 200 |
| APMFG0850 | 1/2'' | 1/2'' | 27 | 14,0 | 36,0 | 50,0 | 200 |
| APMFG0860 | 1/2'' | 1/2'' | 27 | 14,0 | 46,0 | 60,0 | 200 |
| APMFG1248 | 3/4'' | 3/4'' | 32 | 16,0 | 32,0 | 48,0 | 200 |
| APMFG1257 | 3/4'' | 3/4'' | 32 | 16,0 | 41,0 | 57,0 | 200 |
| APMFG1267 | 3/4'' | 3/4'' | 32 | 16,0 | 51,0 | 67,0 | 200 |
| APMFG1272 | 3/4'' | 3/4'' | 32 | 16,0 | 56,0 | 72,0 | 200 |
| APMFG1654 | 1'' | 1'' | 41 | 18,0 | 36,0 | 54,0 | 120 |
| APMFG1660 | 1'' | 1'' | 41 | 18,0 | 42,0 | 60,0 | 120 |
| APMFG1680 | 1'' | 1'' | 41 | 18,0 | 62,0 | 80,0 | 120 |
| APMFG2062 | 1.1/4'' | 1.1/4'' | 50 | 20,0 | 42,0 | 62,0 | 105 |
| APMFG2092 | 1.1/4'' | 1.1/4'' | 50 | 20,0 | 72,0 | 92,0 | 105 |
| APMFG2465 | 1.1/2'' | 1.1/2'' | 55 | 22,0 | 43,0 | 65,0 | 105 |
| APMFG2495 | 1.1/2'' | 1.1/2'' | 55 | 22,0 | 73,0 | 95,0 | 105 |
| APMFG3257 | 2'' | 2'' | 70 | 25,0 | 32,0 | 57,0 | 70 |
| APMFG3262 | 2'' | 2'' | 70 | 25,0 | 37,0 | 62,0 | 70 |
NOTA BENE: per i prodotti tubi ogni unità ordinata corrisponde a 1 mt
