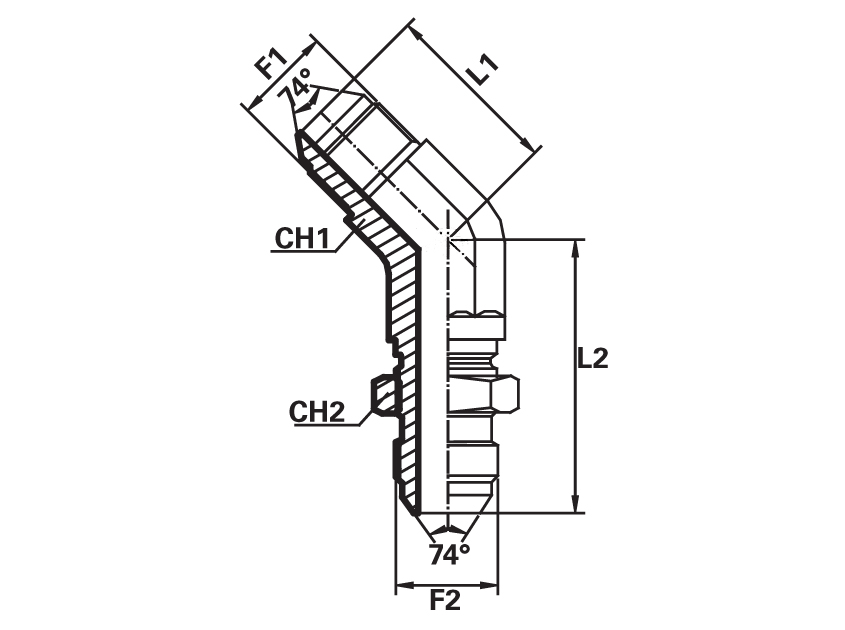

GOMITO 45° PASSAPARETE MASCHIO JIC - MASCHIO JIC
F1 - JIC
F2 - JIC
| Codice | F1 | F2 | CH1 | CH2 | L1 (mm) | L2 (mm) | PN (bar) |
| QPPMJ04 | 7/16" | 7/16" | 14 | 17 | 19,5 | 39,0 | 310 |
| QPPMJ05 | 1/2" | 1/2" | 14 | 19 | 20,0 | 41,0 | 275 |
| QPPMJ06 | 9/16" | 9/16" | 14 | 22 | 21,5 | 43,0 | 275 |
| QPPMJ08 | 3/4" | 3/4" | 19 | 24 | 25,5 | 49,5 | 275 |
| QPPMJ10 | 7/8" | 7/8" | 22 | 30 | 29,0 | 55,0 | 210 |
| QPPMJ12 | 1".1/16 | 1".1/16 | 27 | 36 | 33,0 | 62,0 | 210 |
| QPPMJ16 | 1".5/16 | 1".5/16 | 33 | 41 | 38,0 | 65,0 | 170 |
| QPPMJ20 | 1".5/8 | 1".5/8 | 41 | 50 | 40,0 | 67,0 | 140 |
NOTA BENE: per i prodotti tubi ogni unità ordinata corrisponde a 1 mt
