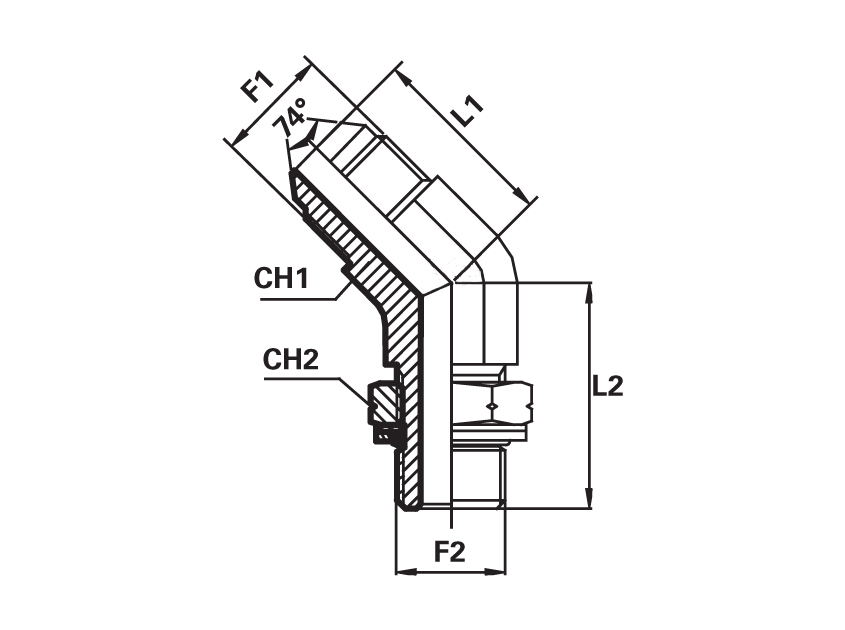

GOMITO 45° MASCHIO JIC - MASCHIO METRICO ORIENTABILE CON O-RING E RITEGNO
F1 - JIC
F2 - Metric
| Codice | F1 | F2 | CH1 | CH2 | L1 (mm) | L2 (mm) | PN (bar) |
| QMJ04MOM10R | 7/16" | 10X1 | 14 | 14 | 19,5 | 27,0 | 310 |
| QMJ04MOM12R | 7/16" | 12X1,5 | 14 | 17 | 20,0 | 27,0 | 275 |
| QMJ05MOM10R | 1/2" | 10X1 | 14 | 14 | 20,0 | 24,0 | 275 |
| QMJ05MOM12R | 1/2" | 12X1,5 | 14 | 17 | 20,0 | 27,0 | 275 |
| QMJ05MOM14R | 1/2" | 14X1,5 | 14 | 19 | 20,0 | 28,0 | 275 |
| QMJ06MOM14R | 9/16" | 14X1,5 | 14 | 19 | 21,5 | 28,0 | 275 |
| QMJ06MOM16R | 9/16" | 16X1,5 | 19 | 22 | 23,0 | 33,0 | 210 |
| QMJ08MOM16R | 3/4" | 16X1,5 | 19 | 22 | 25,5 | 33,0 | 275 |
| QMJ08MOM18R | 3/4" | 18X1,5 | 19 | 24 | 25,5 | 33,0 | 275 |
| QMJ10MOM18R | 7/8" | 18X1,5 | 22 | 24 | 29,0 | 34,5 | 210 |
| QMJ10MOM22R | 7/8" | 22X1,5 | 22 | 27 | 29,0 | 38,0 | 210 |
| QMJ12MOM22R | 1".1/16 | 22X1,5 | 27 | 27 | 33,0 | 41,5 | 210 |
| QMJ12MOM27R | 1".1/16 | 27X2 | 27 | 32 | 33,0 | 46,0 | 210 |
| QMJ16MOM27R | 1".5/16 | 27X2 | 33 | 32 | 38,0 | 46,0 | 170 |
| QMJ16MOM33R | 1".5/16 | 33X2 | 33 | 41 | 38,0 | 46,0 | 170 |
| QMJ20MOM42R | 1".5/8 | 42X2 | 41 | 50 | 40,0 | 40,0 | 140 |
NOTA BENE: per i prodotti tubi ogni unità ordinata corrisponde a 1 mt
