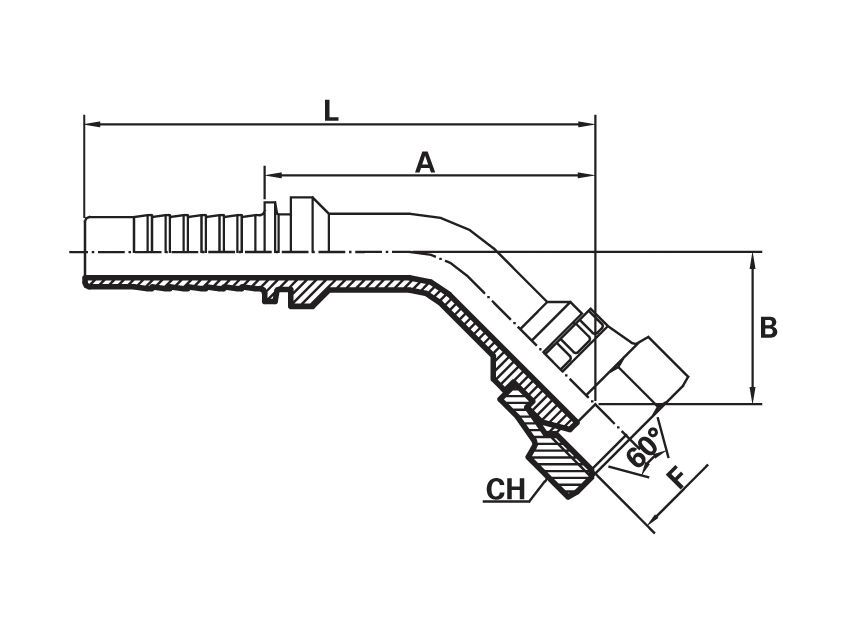

| Codice | DN | Pollici-Tubo | Diam. | F | TPI | CH | B | A | L (mm) | PN (bar) | PN (psi) |
| F45G0202X | 3 | 1/8" | 02 | 1/8" | 28 | 15 | 0,0 | 0,0 | 0,0 | 415 | 6000 |
| F45G0204X | 3 | 1/8" | 02 | 1/4" | 19 | 19 | 0,0 | 0,0 | 0,0 | 415 | 6000 |
| F45G0302X | 5 | 3/16" | 03 | 1/8" | 28 | 15 | 17,0 | 40,0 | 65,0 | 415 | 6000 |
| F45G0304X | 5 | 3/16" | 03 | 1/4" | 19 | 19 | 17,0 | 40,0 | 65,0 | 415 | 6000 |
| F45G0402X | 6 | 1/4" | 04 | 1/8" | 28 | 15 | 17,0 | 40,0 | 68,0 | 415 | 6000 |
| F45G0404X | 6 | 1/4" | 04 | 1/4" | 19 | 19 | 17,0 | 40,0 | 68,0 | 450 | 6500 |
| F45G0406X | 6 | 1/4" | 04 | 3/8" | 19 | 22 | 20,0 | 43,0 | 71,0 | 450 | 6500 |
| F45G0408X | 6 | 1/4" | 04 | 1/2" | 14 | 27 | 24,0 | 55,0 | 83,0 | 450 | 6500 |
| F45G0504X | 8 | 5/16" | 05 | 1/4" | 19 | 19 | 20,0 | 51,0 | 79,0 | 350 | 5000 |
| F45G0506X | 8 | 5/16" | 05 | 3/8" | 19 | 22 | 21,0 | 52,0 | 80,0 | 350 | 5000 |
| F45G0508X | 8 | 5/16" | 05 | 1/2" | 14 | 27 | 24,0 | 55,0 | 83,0 | 350 | 5000 |
| F45G0604X | 10 | 3/8" | 06 | 1/4" | 19 | 19 | 19,0 | 54,0 | 84,0 | 450 | 6500 |
| F45G0606X | 10 | 3/8" | 06 | 3/8" | 19 | 22 | 20,0 | 55,0 | 85,0 | 450 | 6500 |
| F45G0608X | 10 | 3/8" | 06 | 1/2" | 14 | 27 | 23,0 | 58,0 | 88,0 | 450 | 6500 |
| F45G0806X | 12 | 1/2" | 08 | 3/8" | 19 | 22 | 20,0 | 63,0 | 96,0 | 415 | 6000 |
| F45G0808X | 12 | 1/2" | 08 | 1/2" | 14 | 27 | 23,0 | 65,0 | 98,0 | 415 | 6000 |
| F45G0810X | 12 | 1/2" | 08 | 5/8" | 14 | 28 | 23,0 | 65,0 | 98,0 | 415 | 6000 |
| F45G0812X | 12 | 1/2" | 08 | 3/4" | 14 | 32 | 21,0 | 66,0 | 99,0 | 415 | 6000 |
| F45G1008X | 16 | 5/8" | 10 | 1/2" | 14 | 27 | 25,0 | 63,0 | 99,0 | 350 | 5000 |
| F45G1010X | 16 | 5/8" | 10 | 5/8" | 14 | 28 | 25,0 | 64,0 | 99,0 | 350 | 5000 |
| F45G1012X | 16 | 5/8" | 10 | 3/4" | 14 | 32 | 26,0 | 64,0 | 100,0 | 350 | 5000 |
| F45G1208X | 20 | 3/4" | 12 | 1/2" | 14 | 27 | 28,0 | 62,0 | 103,0 | 350 | 5000 |
| F45G1210X | 20 | 3/4" | 12 | 5/8" | 14 | 28 | 29,0 | 63,0 | 104,0 | 350 | 5000 |
| F45G1212X | 20 | 3/4" | 12 | 3/4" | 14 | 32 | 29,0 | 63,0 | 104,0 | 350 | 5000 |
| F45G1216X | 20 | 3/4" | 12 | 1" | 11 | 38 | 31,0 | 65,0 | 105,0 | 350 | 5000 |
| F45G1616X | 25 | 1" | 16 | 1" | 11 | 38 | 41,0 | 90,0 | 145,0 | 280 | 4000 |
| F45G1620X | 25 | 1" | 16 | 1.1/4" | 11 | 50 | 44,0 | 93,0 | 148,0 | 280 | 4000 |
| F45G2020X | 32 | 1.1/4" | 20 | 1.1/4" | 11 | 50 | 44,0 | 102,0 | 163,0 | 210 | 3000 |
| F45G2024X | 32 | 1.1/4" | 20 | 1.1/2" | 11 | 55 | 45,0 | 103,0 | 164,0 | 210 | 3000 |
| F45G2424X | 40 | 1.1/2" | 24 | 1.1/2" | 11 | 55 | 45,0 | 118,0 | 189,0 | 185 | 2700 |
| F45G3232X | 51 | 2" | 32 | 2" | 11 | 70 | 136,0 | 135,0 | 215,0 | 165 | 2400 |
NOTA BENE: per i prodotti tubi ogni unità ordinata corrisponde a 1 mt
