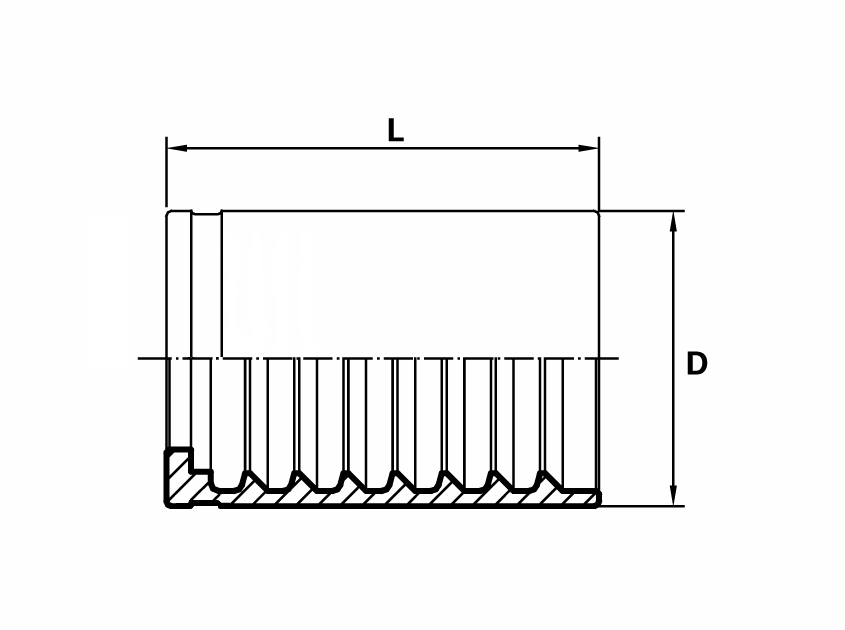

| Codice | DN | Pollici-Tubo | Diam. | D (mm) | L (mm) |
| B1MT03 | 5 | 3/16" | 03 | 15,0 | 26,0 |
| B1MT04 | 6 | 1/4" | 04 | 18,0 | 29,0 |
| B1MT05 | 8 | 5/16" | 05 | 20,0 | 30,0 |
| B1MT06 | 10 | 3/8" | 06 | 22,0 | 32,0 |
| B1MT08 | 12 | 1/2" | 08 | 27,0 | 34,0 |
| B7R10 | 16 | 5/8" | 10 | 28,5 | 36,0 |
| B1R12 | 20 | 3/4" | 12 | 36,0 | 43,0 |
| B7R16 | 25 | 1" | 16 | 40,0 | 50,0 |
NOTA BENE: per i prodotti tubi ogni unità ordinata corrisponde a 1 mt
