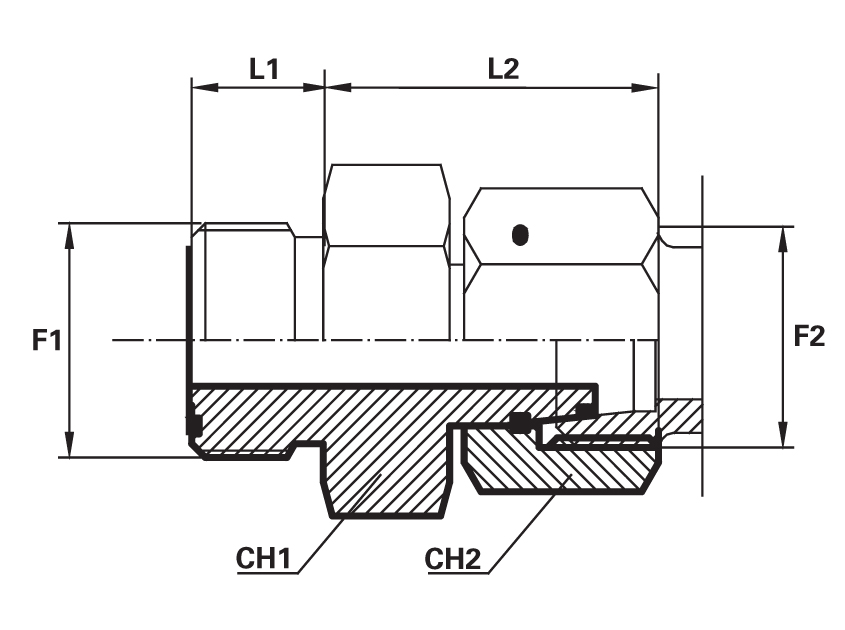

ADATTATORE DIRITTO MASCHIO ORFS - FEMMINA DIN DADO SPINATO
F1 - ORFS
F2 - DIN
| Codice | F1 | F2 | CH1 | CH2 | T (mm) | L1 (mm) | L2 (mm) | Serie | PN (bar) |
| AMO06FE06L | 9/16" | 12X1.5 | 17 | 14 | 6 | 10,0 | 24,5 | L | 315 |
| AMO06FE08L | 9/16" | 14X1.5 | 17 | 17 | 8 | 10,0 | 24,5 | L | 315 |
| AMO09FE10L | 11/16" | 16X1.5 | 19 | 19 | 10 | 11,0 | 26,5 | L | 315 |
| AMO11FE12L | 13/16" | 18X1.5 | 22 | 22 | 12 | 13,0 | 27,0 | L | 315 |
| AMO13FE15L | 1" | 22X1.5 | 27 | 27 | 15 | 15,5 | 31,0 | L | 315 |
| AMO14FE18L | 1.3/16" | 26X1.5 | 32 | 32 | 18 | 17,0 | 33,5 | L | 315 |
| AMO15FE22L | 1.7/16" | 30X2 | 41 | 36 | 22 | 17,5 | 36,0 | L | 160 |
| AMO21FE28L | 1.11/16" | 36X2 | 46 | 41 | 28 | 17,5 | 39,0 | L | 160 |
| AMO32FE35L | 2" | 45X2 | 55 | 50 | 35 | 17,5 | 45,0 | L | 160 |
| AMO32FE42L | 2" | 52X2 | 55 | 60 | 42 | 17,5 | 45,0 | L | 160 |
| AMO06FE06S | 9/16" | 14X1.5 | 17 | 17 | 6 | 10,0 | 24,5 | S | 630 |
| AMO06FE08S | 9/16" | 16X1.5 | 17 | 19 | 8 | 10,0 | 25,0 | S | 630 |
| AMO09FE10S | 11/16" | 18X1.5 | 19 | 22 | 10 | 11,0 | 27,0 | S | 630 |
| AMO11FE12S | 13/16" | 20X1.5 | 22 | 24 | 12 | 13,0 | 27,5 | S | 630 |
| AMO13FE14S | 1" | 22X1.5 | 27 | 27 | 14 | 15,5 | 32,5 | S | 420 |
| AMO13FE16S | 1" | 24X1.5 | 27 | 30 | 16 | 15,5 | 35,0 | S | 400 |
| AMO14FE20S | 1.3/16" | 30X2 | 32 | 36 | 20 | 17,0 | 39,0 | S | 400 |
| AMO15FE25S | 1.7/16" | 36X2 | 41 | 46 | 25 | 17,5 | 43,0 | S | 400 |
| AMO21FE30S | 1.11/16" | 42X2 | 46 | 50 | 30 | 17,5 | 47,5 | S | 280 |
| AMO32FE38S | 2" | 52X2 | 55 | 60 | 38 | 17,5 | 51,0 | S | 280 |
NOTA BENE: per i prodotti tubi ogni unità ordinata corrisponde a 1 mt
