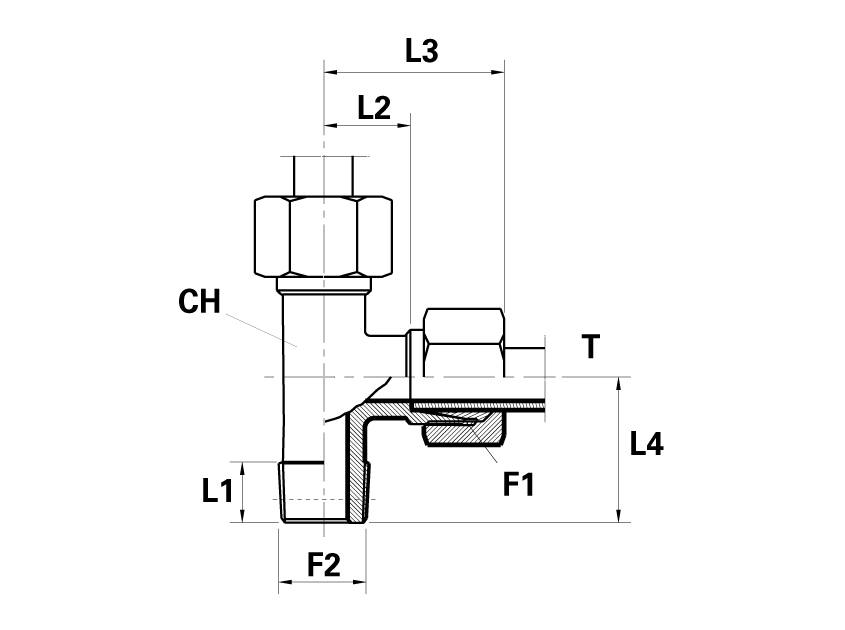

ADATTATORE T MASCHIO DIN - MASCHIO METRICO CONICO AL BRACCIO
F1 - Metric
F2 - Metric taper
| Codice | F1 | F2 | T (mm) | CH | L1 (mm) | L2 (mm) | L3 (mm) | L4 (mm) | PN (bar) | Serie |
| TME06LMMK10B | 12X1,5 | 10X1 | 6 | 12 | 8,0 | 12,0 | 20,0 | 27,0 | 315 | L |
| TME08LMMK12B | 14X1,5 | 12X1,5 | 8 | 12 | 12,0 | 14,0 | 26,0 | 29,0 | 315 | L |
| TME10LMMK14B | 16X1,5 | 14X1,5 | 10 | 14 | 12,0 | 15,0 | 27,0 | 30,0 | 315 | L |
| TME12LMMK16B | 18X1,5 | 16X1,5 | 12 | 17 | 12,0 | 17,0 | 28,0 | 32,0 | 315 | L |
| TME15LMMK18B | 22X1,5 | 18X1,5 | 15 | 19 | 14,0 | 21,0 | 34,0 | 36,0 | 315 | L |
| TME18LMMK22B | 26X1,5 | 22X1,5 | 18 | 24 | 14,0 | 23,5 | 36,0 | 40,0 | 315 | L |
| TME06SMMK12B | 14X1,5 | 12X1,5 | 6 | 12 | 12,0 | 16,0 | 26,0 | 31,0 | 630 | S |
| TME08SMMK14B | 16X1,5 | 14X1,5 | 8 | 14 | 12,0 | 17,0 | 27,0 | 32,0 | 630 | S |
| TME10SMMK16B | 18X1,5 | 16X1,5 | 10 | 17 | 12,0 | 17,5 | 28,0 | 34,0 | 630 | S |
| TME12SMMK18B | 20X1,5 | 18X1,5 | 12 | 17 | 12,0 | 21,5 | 31,0 | 38,0 | 630 | S |
| TME14SMMK20B | 22X1,5 | 20X1,5 | 14 | 19 | 14,0 | 22,0 | 32,0 | 40,0 | 630 | S |
| TME16SMMK22B | 24X1,5 | 22X1,5 | 16 | 24 | 14,0 | 24,5 | 32,0 | 43,0 | 400 | S |
NOTA BENE: per i prodotti tubi ogni unità ordinata corrisponde a 1 mt
