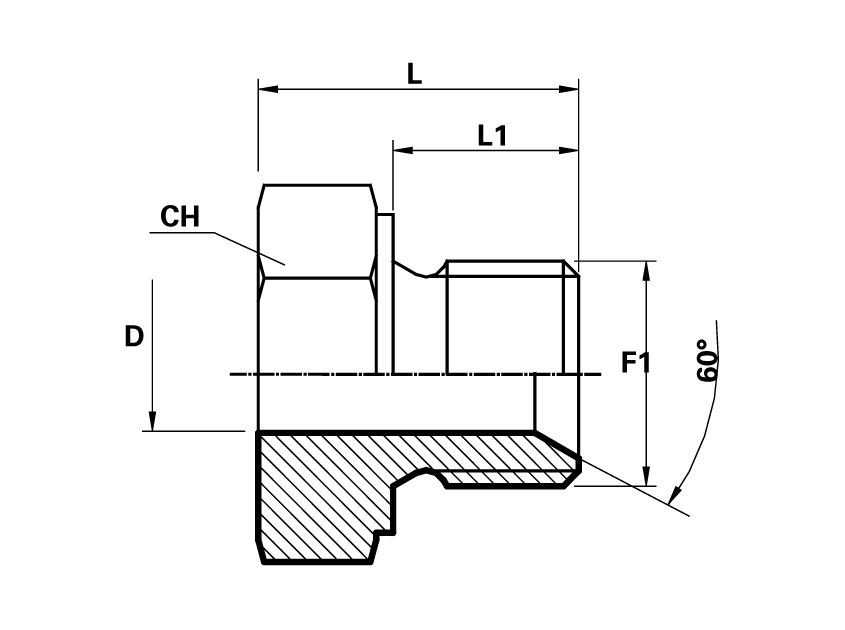

ADATTATORE DIRITTO A SALDARE MASCHIO GAS CILINDRICO
F1 - BSPP
N.b.: Elementi non sottoposti al processo di zincatura
Not galvanized iron
| Codice | F1 | CH | L1 (mm) | L (mm) | D (mm) | PN (bar) |
| AMNS02 | 1/8'' | 14 | 9,5 | 15,5 | 4,0 | 350 |
| AMNS04 | 1/4'' | 19 | 11,0 | 18,0 | 7,0 | 300 |
| AMNS06 | 3/8'' | 22 | 12,5 | 20,5 | 9,5 | 280 |
| AMNS08 | 1/2'' | 27 | 14,0 | 24,0 | 12,0 | 200 |
| AMNS10 | 5/8'' | 27 | 16,0 | 26,0 | 14,0 | 200 |
| AMNS12 | 3/4'' | 32 | 16,0 | 26,0 | 16,0 | 200 |
| AMNS16 | 1'' | 41 | 18,0 | 31,0 | 22,0 | 120 |
| AMNS20 | 1.1/4'' | 50 | 20,0 | 34,0 | 26,3 | 105 |
| AMNS24 | 1.1/2" | 55 | 22,0 | 36,0 | 35,0 | 105 |
| AMNS32 | 2'' | 70 | 25,0 | 41,0 | 45,0 | 70 |
NOTA BENE: per i prodotti tubi ogni unità ordinata corrisponde a 1 mt
